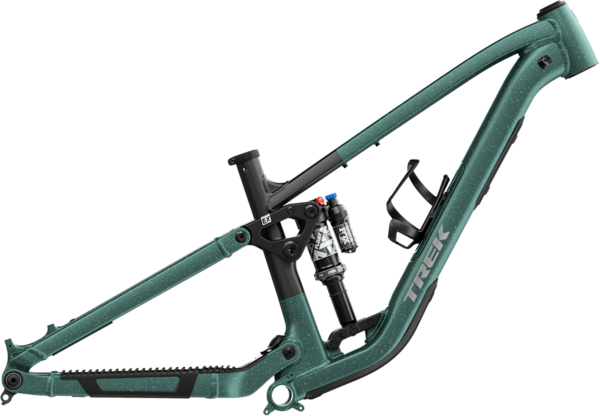

Trek Fuel EX Alloy Frameset Gen 7

Trek Fuel EX Alloy Frameset Gen 7
$1,999.99
Color: Matte Juniper/Blue Sage Splatter
Size: Select size
Wheel Size: 29-inch
Please select options Unavailable
For bike order pickup, please wait until we contact you to notify you that your bike is ready for pickup. Bicycles may not be assembled and may need up to 5 days to prepare for pick up. For pickup of other in-stock merchandise, please allow at least 24 hours prior to pickup. Note, items may have to be ordered or transferred from one of our five stores. Please keep an eye on your email!

Details

Fuel Aluminum Frameset offers near limitless possibilities for your dream MTB build. Keep this alloy frame classic with a 145/150mm suspension setup and 29ers for ride-anything EX capability, go 150/160 and MX wheels to throw whips and get rowdy, or up the hard-charging prowess with a 160/170mm 29er LX build. Fuel's maximum adjustability is ready for it all.

Geometry Chart:
Frame size number17.5"19.5"21.5"
Frame size letter M L XL
Wheel size 29" 29" 29"
A — Seat tube 40 42 45.5
B — Seat tube angle 72.6° 72.6° 72.6°
Effective seat tube angle 78.3° 77.4° 76.9°
C — Head tube length 11 12.5 14
D — Head angle 64.5° 64.5° 64.5°
E — Effective top tube 58.3 61.7 65.1
F — Bottom bracket height 33.9 33.9 33.9
G — Bottom bracket drop 3.5 3.5 3.5
H — Chainstay length 43.7 44.2 44.7
I — Offset 4.4 4.4 4.4
J — Trail 12.9 12.9 12.9
K — Wheelbase 122.5 126.2 129.8
L — Standover 74.4 74.7 75.8
M — Frame reach 46 48.5 51
N — Frame stack 62.4 63.8 65.1
Sizes:
SizeRider HeightInseam
S

155 - 165 cm

5'1" - 5'5"

74 - 78 cm

29" - 31"
M

165 - 177 cm

5'5" - 5'10"

79 - 83 cm

31" - 33"
L

177 - 188 cm

5'10" - 6'2"

84 - 89 cm

33" - 35"
XL

188 - 195 cm

6'2" - 6'5"

89 - 91 cm

35" - 36"

Specs

Frame Alpha NEXT Platinum aluminum, internal storage, ZS headset, adjustable leverage rate, guided internal routing, interchangeable alloy rocker link, interchangeable lower shock mount, downtube guard, shuttle guard, BSA 73, ISCG 05, ABP, UDH, Boost148, adaptable travel 145mm-160mm
Rear Shock Fox Performance Float X, 2-position damper, 205mm x 60mm

* Subject to change without notice.

Part Numbers

Option UPC MPN
Matte Juniper/Blue Sage Splatter / Small / 29-inch 197216297338 5335698
Matte Juniper/Blue Sage Splatter / Medium / 29-inch 197216297345 5335699
Matte Juniper/Blue Sage Splatter / Large / 29-inch 197216297352 5335700
Matte Juniper/Blue Sage Splatter / X-Large / 29-inch 197216297369 5335701
